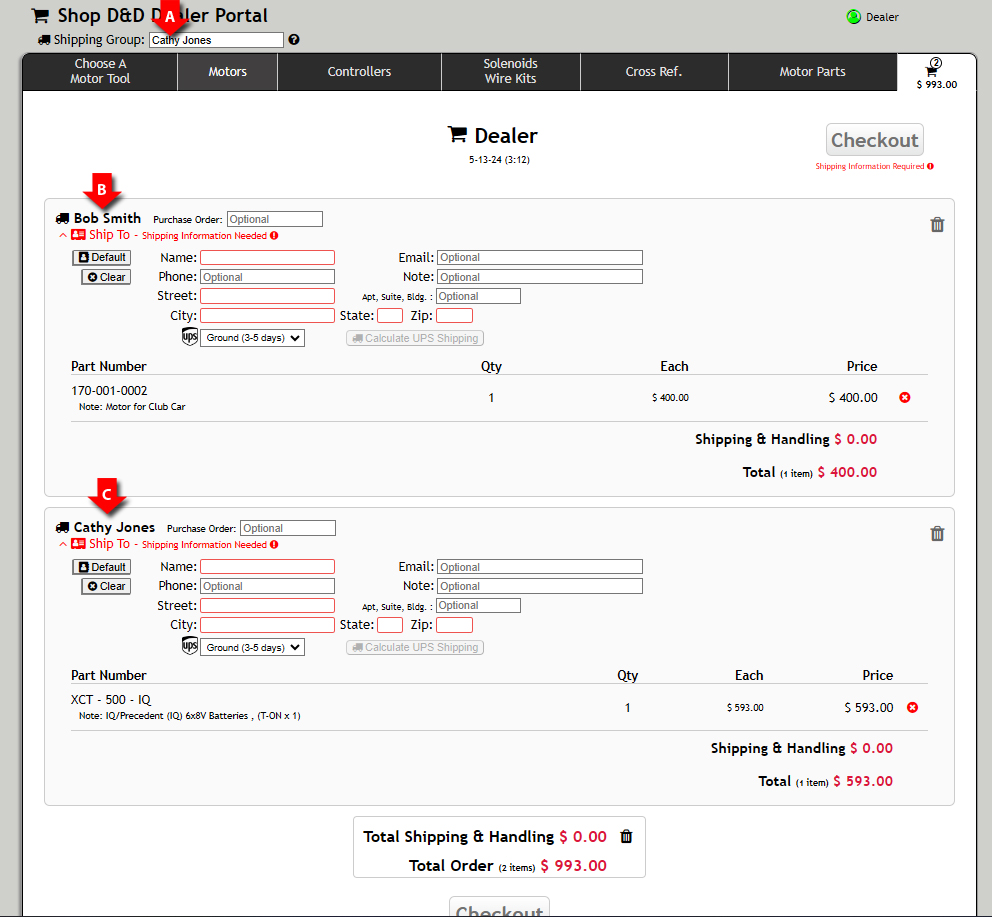

Shipping Groups A (Optional) are mostly used for Drop-Shipments. Enter the Name or some identifying label for the shipment into the Shipping Group field. This will keep all items together for that group. This feature allows you to enter orders containing multiple drop-shipments. Each group gets procesed as a seperate charge and processed as an individual order at checkout. Multiple drop shipments with 1 Single Checkout click!

For example, Enter the Name of a customer (ie. Bob Smith) in the Shipping group field. Now add items to your cart that you intend to have shipped to Bob Smith. And you also have another customer (ie. Cathy Jones) to buy different items for. Now clear the Shipping Group field and enter Cathey Jones. And add all of the items for their vehicle. When you're done adding items. Go to the Shopping Cart Tab and you'll see 2 different Shipping Groups (carts) ready for checkout. Enter the appropriate shipping address for each group. Press calculate shipping after all addresses have been entered. This will activate the Checkout Buttons.

Shipping Groups can also be used to organize items into logical groups. Maybe you have muliptle, different vehicles to purchase items for. Maybe you're working on 3 different vehicles for different customers and you'd like to organize the parts for each vehicle into the appropriate groups.

In the Shopping Cart Tab, shipping group labels will apear in the seperate Shopping Carts in the upper left of each cart B C. If you leave the field blank, all items will go into the "Default" group (cart). Meaning all items will be shipping to one location. This doesn't easily allow for Drop-Shipments to multiple customers though (without processing each one through as a completely different order). Shipping Groups are intended to make the checkout process for drop-shipment orders quicker and easier. With a "One Click Checkout" process at the end.

Note: Each Shipping Group must have the address Information completely filled out before the Checkout buttons will be active.

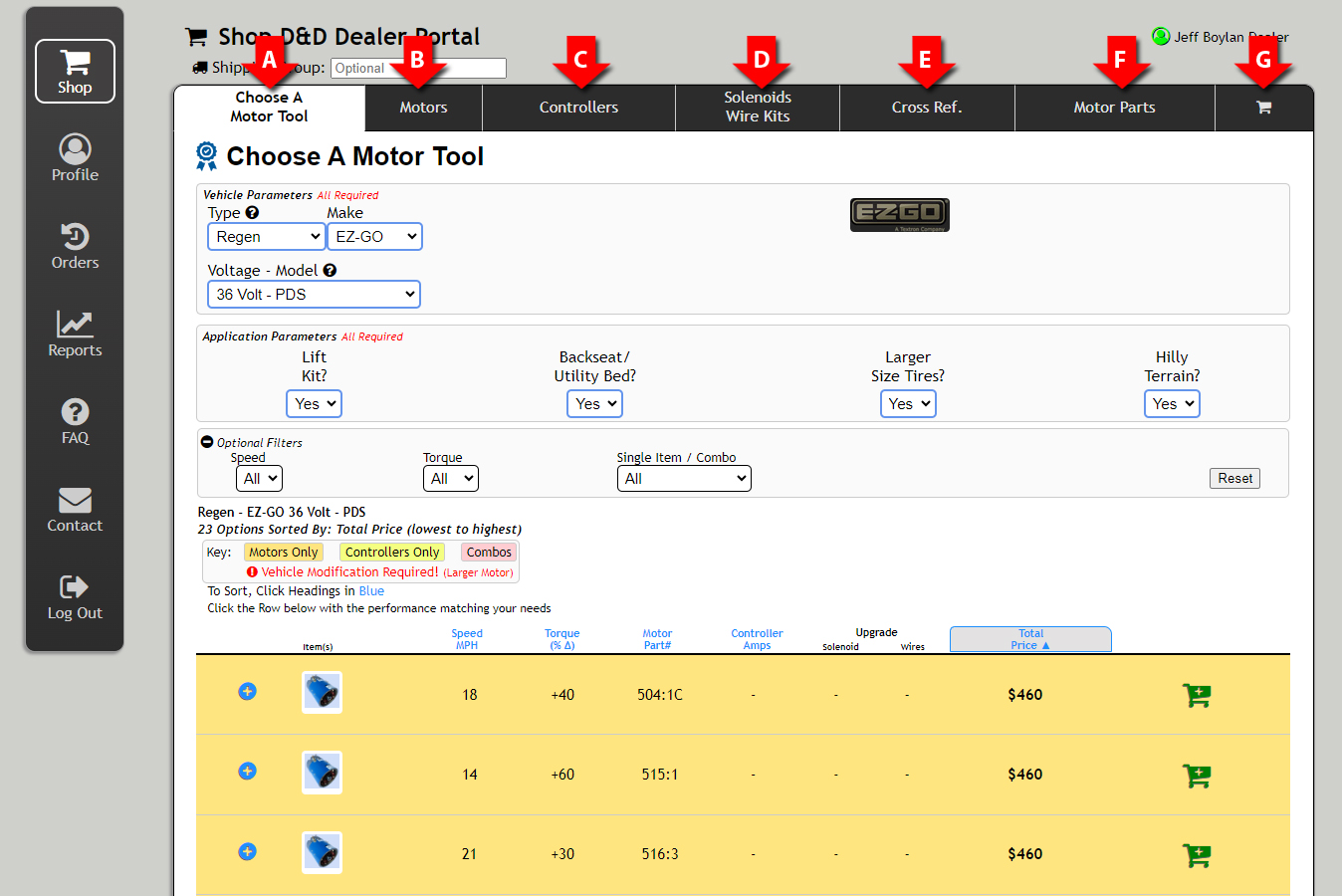

Shopping Portal - Golf Cart Motors, Controllers & Parts
Choose A
Motor Tool
Motors
Controllers
Solenoids
Wire Kits
Cross Ref.
Motor Parts
Total
Choose a Controller Brand
Alltrax
Model:
$ Price
Amps
Features:
• Made in the USA
• Bluetooth feature available as an add-on
• Less affected by Tariffs
• Fully Epoxy Coated
• Focused on efficiency and performance
• Emphasis on long-lasting and durable products
Navitas
Features:
• Made in China. Assembed & Tested in Canada
• Bluetooth app for fine-tuning included
• Mobile app interface for easy adjustments
• Broad compatibility with various brands
• High efficiency and regenerative braking
• Large emphasis on performance
Do I have a Series or Regen Cart?
X
(5 easy ways to tell the difference - Use at least 3 of 5 to confirm.)

1. Does the Golf Cart have a Tow/Run switch or Run/Maintenance switch? This would be under the seat. If the cart DOES have this switch, it is a Regen (Regenerative Braking) cart. If there is NOT a switch, then its a Series cart (Exception - Club Car : Regen I Models).

See examples below (Fig. 1.1, Fig. 1.2 & Fig. 1.3).

Fig 1.1
Fig 1.2
Fig 1.3
EZ-GO
Run/Maintenance Switch
Club Car
Tow/Run Switch
Yamaha
Tow/Run Switch

2. Does the motor have a speed sensor wire protruding from the end head? If the answer is YES, then it is a Regen motor. If there is NO speed sensor lead on the motor, then it is a Series motor.
See Fig. 2 below.

Fig. 2
E-Z-GO Regen MotorClub Car Regen Motor
Exception: Early EZ-GO - DCS (Drive Control System) models
around 1997 are Regen but do NOT have a speed sensor!
3. What do the motor Field Coil Windings Look Like?
a. Regen motors have "shunt" or "round wire" coils, usually with smaller gauge wire (12AWG - 24AWG range). Usuaully, with a large amount of turns (60 to 200+ turns) per field coil.
b. Series motors have "flat wire" coils with larger wire sizes. Usually, the wire is rectanular in shape (cross-section). These coils have a much lower number of turns (usually 5 to 15 turns) per field coil.
See Fig. 3a & 3b below
Fig. 3a

Fig. 3b
Note:A Regen cart will normally automatically slow down when you hit approximately 15 MPH going down a hill. This is for safety reasons (as not to over-spin the armature).

4. Are there 2 smaller diameter (1/4-20 UNC) terminals and 2 larger diameter (5/16-18 UNC) terminals on the motor? Or are all 4 terminal studs on the motor the same size (5/16-18 UNC)?
If there are 2 smaller and 2 larger terminals bolts, its a Regen motor.
If all 4 bolts are the same size, then its a Series motor.
See Fig. 4 below

Fig. 4

5. Series Vehicle Features
    a. E-Z-GO Series Cart Features.
 OR
(Except Regen DCS EZ-GO Model, which HAS this handle.) 1st Generation: 1204 or 1205 footprint. Marathon Models mainly.
(YR. 1990-1994.5)		2nd Generation: 1206 footprint. TXT Models mainly.
(YR. 1994.5 & Up)

    b. Club Car Series Cart Features.
OR
Black Controller:
Throttle (0-5k): 36 Volt
(YR. 1990-1994)		 Silver Controller:
Throttle (5k-0): 48Volt
(YR. 1995 & Up)


What Model Regen Cart do I have?
X


1.This is quite simple. Just lift up the seat on your golf cart and count the number of water-fill holes on the batteries. Mutiply that number by 2. That number is the voltage of the golf cart. You can also check the charger for a voltage listing.
See Fig. 1.a & 1.b below for examples.

Fig. 1.a
Fig. 1.b
3 water-fill holes = 6 Volt battery
4 water-fill holes = 8 Volt Battery
ex. Most EZ-GO Carts will have
6 (6 Volt battries).

6 X 6 Volts = 36 Volts.
ex. Most Club Car carts will have
6 (8 Volt batteries)

6 X 8 Volts = 48 Volts


1. For EZ-GO Regen carts, you must determine if it is a DCS (Drive Control System) or PDS (Power Drive System) cart. This can be determined by the type of Forward/Reverse switch and controller. Be advised, more often than not, the model type is written right on the cart itself.
See examples (Fig. 1.1 & Fig. 1.2) below.





Fig. 1.1
Fig. 1.2
EZ-GO DCS
Shift Handle &
SX Speed Controller
36V 275A (DCS) 9 Pin
EZ-GO PDS
Rocker Switch &
1206-MX Speed Controller 36V 275A (PDS) Multi Pin

2. For Club Car Regen carts, you must determine if it is a Regen I, PDPlus / Regen II , IQ/Precedent (NOT I2) or Precedent I2 model. This can be determined by the type of Forward/Reverse switch and/or the type of controller in the cart. See examples below.
Note: IQ Carts will have a Serial Number on the data plate that begins with the letter "Q".


For DS Model
(YR. 2001.5-2012)
For Precedent Model
(YR. 2004 & Up)

Fig. 2.2
Rocker Switch NO IQ Plug
See Fig. 2.3 & 2.4
Fig. 2.1
Rocker Switch w/ IQ Plug.
& IQ Controller (16 pin)
Club Car IQ cart.
** How to identify an Precedent I2 car
In the last half of 2008, Club Car introduced their new Precedent i2 car. The body is that of the Precedent cart, but the wiring and electronics are different that their previous IQ/Precedent models.
Cosmetically, the Precedent and i2 cart look the same even the wiring harness looks the same. The wire harness interface is still the 16 pin white connector and will plug into both the IQ/Precedent and the Precedent i2 controllers. The wiring in the connector and the throttle are different between the two cars and are not compatible.
The fastest and easiest way to identify the i2 car is by the color of the controller. The IQ/Precedent car uses a BLACK Curtis controller. The i2 car uses a GREY Curtis controller (PN: 103403401).
The location of the controller has changed since the initial release of the i2. The controller could be located in the center console or on the passenger side of the car against the rear battery wall.
Fig. 2.3
Fig. 2.4
Regen I Controller
(PN- 1018537-01 )
Regen II Controller
(PN- 1018879-01)
- And No IQ Plug :
Regen I cart
(YR. 1995.5 - 1997.5)
- And No IQ Plug :
PDPlus or Regen II cart
(YR. 1997.5 - 2001.5)

3.For Yamaha Regen carts you must determine the "G" number model of the cart. (ex. G19, G22 or GMAX) Please call us if you need help (315) 701 -0635
What Year is My Series Cart?
X


1.This is quite simple. Just lift up the seat on your golf cart and count the number of water-fill holes on the batteries. Mutiply that number by 2. That number is the voltage of the golf cart. You can also check the charger for a voltage listing.
See Fig. 1.a & 1.b below for examples.

Fig. 1.a
Fig. 1.b
3 water-fill holes = 6 Volt battery
4 water-fill holes = 8 Volt Battery
ex. Most EZ-GO Carts will have
6 (6 Volt battries).

6 X 6 Volts = 36 Volts.
ex. Most Club Car carts will have
6 (8 Volt batteries)

6 X 8 Volts = 48 Volts



1. What year is my E-Z-GO?

TXT 1996 - PresentMedalist 1994 - 1995Marathon 1988 - 1994

1a. Where is the Serial Number located on my E-Z-GO?

Medalist & TXT Models (1994 to Present)
The manufacturers number and serial number for these E-Z-GO golf cart models can be found on a plate in the passenger side glove box. The manufacturers number DOES reflect the model year. This number will usually be: One letter followed by 3 to 4 numbers. Theses numbers will include the last 2 digits of the model year. The order of these numbers has changed over the years. The serial number is a 6 or 7 digit number that does NOT indicate the model year.
Marathon Models (1976 to 1993)
The manufacturers number and serial number for these E-Z-GO golf cart models can be found on a plate under the passenger side glove box. The manufacturers number DOES reflect the model year. This number will usually be: One letter followed by 3 to 4 numbers. Theses numbers will include the last 2 digits of the model year. The order of these numbers has changed over the years. The serial number is a 6 or 7 digit number that does NOT indicate the model year.

2. What year is my Club Car?

1982 - 2000½ 2000½ - Present

2a. Where is the Serial Number located on my Club Car?

From 1981 through Present, Club Car positions the serial number under the glove box on the passenger side of the golf cart. The first 2 numerical characters indicate the last 2 digits of the year of manufacture. Golf carts prior to 1981, the serial number can be found on the vehicle frame. Lift the seat and locate the aluminum "I-beam" frame section (closest to the batteries). Note: If this serial number has been removed, you can confirm if its between 1975 & 1980 if there are 2 brake pedals and 1 accelerator pedal.

3. What year is my Yamaha?

G1 G2 & G9 G14, G16, G19 & G20
Note:For Yamaha vehicles use the attached chart to figure out the year of the cart. The year can be determined by the serial number of the vehicle.
3a Where is the Serial Number located on my Yamaha?

• For G1 model carts, the serial number can be found under the rear bumper stamped into the square cross member of the frame.
•For early G2 model carts, the serial number can be found under the rear bumper stamped into the square cross memeber of the frame. For G2 models made between 1988 and 1990, the serial number can be found under the seat where the floor board meets the motor compartment.
•For G9 models, the serial number can be found under the seat where the floor board meets the motor compartment.
•For modles G14, G16, G19 & G20, the serial number can be found running vertically just under the glove box on the far left (drivers side) of the vehicle.
36 or 48 Volts?
X


1.This is quite simple. Just lift up the seat on your golf cart and count the number of water-fill holes on the batteries. Mutiply that number by 2. That number is the voltage of the golf cart. You can also check the charger for a voltage listing.
See Fig. 1.a & 1.b below for examples.

Fig. 1.a
Fig. 1.b
3 water-fill holes = 6 Volt battery
4 water-fill holes = 8 Volt Battery
ex. Most EZ-GO Carts will have
6 (6 Volt battries).

6 X 6 Volts = 36 Volts.
ex. Most Club Car carts will have
6 (8 Volt batteries)

6 X 8 Volts = 48 Volts

Use Our Choose A Motor Tool - Get a 1 Year Warranty!
Vehicle Parameters All Required
Type Make
Get the Right Motor / Controller !

The number 1 reason for a return?
The wrong motor was purchased for the application.
Choosing the wrong motor could lead to grave injury or death!
Avoid liability by getting Right motor that's safe in your application.
Get the best performance and right fit for your needs.
Reset
Filters
Power Type
DC AC
Vehicle Make

Club Car
EZ GO &
Yamaha
Vehicle Type

Regen

Series
Performance

All

Hi-Speed

Hi-Torque
Hi-Speed
& Torque
DC Motors - Golf Cart Product Line
Club Car (10 tooth female spline) Top
Part NumberSpeedTorqueHPWeightPriceQty
Series Motors (48 Volts @ 225 Amp Stock Controller)
1170-001-0002
For: Club Car		Motor13 | 16+ 20 %7.1 | 10.050 lbs$ 700.00
2170-002-0002
For: Club Car		Motor15 | 18+ 10 %7.0 | 10.150 lbs$ 700.00
3170-003-0002
For: Club Car		Motor18 | 21 -10 %7.0 | 10.650 lbs$ 700.00
4170-004-0002A
For: Club Car		Motor13 | 15+ 60 %6.7 | 9.962 lbs$ 850.00
5170-007-0002
For: Club Car		Motor21 | 25 -15 %9.2 | 11.550 lbs$ 700.00
6170-010-0005
For: Club Car		Motor16 | 19+ 50 %7.2 | 9.757 lbs$ 825.00
7170-011-0002
For: Club Car		Motor21 | 24 -10 %7.9 | 9.850 lbs$ 700.00
8170-012-0002
For: Club Car		Motor24 -20 %8.050 lbs$ 700.00
9170-013-0002
For: Club Car		Motor16 | 19+ 40 %7.4 | 10.862 lbs$ 850.00
10170-016-0002
For: Club Car		Motor20 | 23+ 20 %7.4 | 10.257 lbs$ 825.00
Regen Motors (48 Volts @ 300 Amp Stock Controller)Top
11170-501-0003
For: Club Car		Motor19 0 %12.350 lbs$ 700.00
12170-502-0002
For: Club Car		Motor15+ 60 %12.162 lbs$ 850.00
13170-504-0002
For: Club Car		Motor21+ 40 %13.257 lbs$ 825.00
14170-505-0002
For: Club Car		Motor17+ 10 %12.250 lbs$ 700.00
15170-506-0002
For: Club Car		Motor24 -10 %13.350 lbs$ 700.00
16170-507-0002
For: Club Car		Motor21+ 20 %13.362 lbs$ 850.00
17170-514-0002A
For: Club Car		Motor13+ 100 %12.072 lbs$ 900.00
18170-515-0002
For: Club Car		Motor17+ 60 %12.757 lbs$ 825.00
19170-516-0001
For: Club Car		Motor24+ 30 %13.357 lbs$ 825.00
20170-520-0002
For: Club Car		Motor19+ 80 %13.372 lbs$ 900.00
*** Vehicle performance specs are compared to the standard factory performance. Several factors can effect the performance. Some are battery conditions; tire size, tread type and air pressure; and varying environmental conditions. Standard factory speeds normally run about 14 MPH!!! All vehicle speeds noted are calculated on flat ground. Adding Larger tires normally adds between 2-3 MPH. If you are unsure of how to use the above chart, please call (315) 701-0635. If you do not see the performance you require, please call. We often are capable of making non-standard motors through our engineering department.
EZ-GO & Yamaha (19 tooth female spline) Top
Part NumberSpeedTorqueHPWeightPriceQty
Series Motors (36 Volts @ 275 Amp Stock Controller)
1170-001-0001
For: EZ-GO,Yamaha		Motor13 | 16+ 20 %8.7 | 12.050 lbs$ 700.00
2170-002-0001
For: EZ-GO,Yamaha		Motor15 | 18+ 10 %8.3 | 11.750 lbs$ 700.00
3170-003-0001
For: EZ-GO,Yamaha		Motor18 | 21 -10 %7.7 | 11.350 lbs$ 700.00
4170-004-0001
For: EZ-GO		Motor12 | 15+ 60 %7.6 | 11.862 lbs$ 850.00
5170-006-0001
For: EZ-GO,Yamaha		Motor21 | 24 -15 %8.6 | 11.350 lbs$ 700.00
6170-008-0001
For: EZ-GO,Yamaha		Motor21 | 24 -15 %8.6 | 11.350 lbs$ 740.00
7170-010-0002
For: EZ-GO,Yamaha		Motor16 | 19+ 50 %8.0 | 10.357 lbs$ 825.00
8170-013-0001
For: EZ-GO		Motor16 | 19+ 40 %8.8 | 12.462 lbs$ 850.00
9170-016-0001
For: EZ-GO,Yamaha		Motor20 | 23+ 20 %9.0 | 11.757 lbs$ 825.00
Regen Motors (36 Volts @ 300 Amp Stock Controller)Top
10170-500-0001
For: EZ-GO		Motor18 | 21 -5 %8.6 | 13.050 lbs$ 700.00
11170-501-0001
For: EZ-GO,Yamaha		Motor16 | 19 0 %8.8 | 12.350 lbs$ 700.00
12170-502-0001
For: EZ-GO,Yamaha		Motor12 | 15+ 60 %8.3 | 12.162 lbs$ 850.00
13170-504-0001C
For: EZ-GO,Yamaha		Motor18 | 21+ 40 %9.1 | 13.257 lbs$ 825.00
14170-505-0001
For: EZ-GO,Yamaha		Motor14 | 17+ 10 %9.0 | 12.250 lbs$ 700.00
15170-506-0001
For: EZ-GO,Yamaha		Motor21 | 24 -10 %9.5 | 13.350 lbs$ 700.00
16170-507-0001
For: EZ-GO,Yamaha		Motor18 | 21+ 20 %8.8 | 13.362 lbs$ 850.00
17170-514-0001C
For: EZ-GO,Yamaha		Motor10 | 13+ 100 %8.7 | 12.072 lbs$ 900.00
18170-515-0001
For: EZ-GO,Yamaha		Motor14 | 17+ 60 %9.2 | 12.757 lbs$ 825.00
19170-516-0003
For: EZ-GO,Yamaha		Motor21 | 24+ 30 %9.3 | 13.257 lbs$ 825.00
20170-520-0001
For: EZ-GO,Yamaha		Motor16 | 19+ 80 %9.4 | 13.372 lbs$ 900.00
*** Vehicle performance specs are compared to the standard factory performance. Several factors can effect the performance. Some are battery conditions; tire size, tread type and air pressure; and varying environmental conditions. Standard factory speeds normally run about 12 MPH!!! All vehicle speeds noted are calculated on flat ground. Adding Larger tires normally adds between 2-3 MPH. If you are unsure of how to use the above chart, please call (315) 701-0635. If you do not see the performance you require, please call. We often are capable of making non-standard motors through our engineering department.
Reset
Filters
Power Type
DC AC
Vehicle Make
Club Car
EZ GO
Yamaha
Vehicle Type
Regen
Series
Brand
Alltrax
Navitas
DC Controllers
 Club Car Regen
Part NumberAmpsTorqueTurboWeightPriceQty
1
XCT - 300 - IQ
For: (Precedent) 4x12V Batteries
 Controller 300 + 5 % 8 lbs $ 575
2
XCT - 300 - IQ
For: IQ/Precedent (IQ) 6x8V Batteries
 Controller 300 + 5 % 8 lbs $ 575
3
XCT - 300 - PDPlus
For: Regen II or PDPlus
 Controller 300 + 5 % 8 lbs $ 575
4
XCT - 400 - IQ
For: (Precedent) 4x12V Batteries
 Controller 400 + 20 % 8 lbs $ 630
5
XCT - 400 - IQ
For: IQ/Precedent (IQ) 6x8V Batteries
 Controller 400 + 20 % 8 lbs $ 630
6
XCT - 400 - PDPlus
For: Regen II or PDPlus
 Controller 400 + 20 % 8 lbs $ 630
7
XCT - 500 - IQ
For: (Precedent) 4x12V Batteries
 Controller 500 + 30 % 8 lbs $ 743
8
XCT - 500 - IQ
For: IQ/Precedent (IQ) 6x8V Batteries
 Controller 500 + 30 % 8 lbs $ 743
9
XCT - 500 - PDPlus
For: Regen II or PDPlus
 Controller 500 + 30 % 8 lbs $ 743
 EZ-GO Regen
Part NumberAmpsTorqueTurboWeightPriceQty
1
XCT - 300 - DCS
For: DCS
 Controller 300 + 5 % 8 lbs $ 575
2
XCT - 300 - PDS
For: PDS
 Controller 300 + 5 % 8 lbs $ 575
3
XCT - 300 - TXT 48
For: Factory (TXT-48V)
 Controller 300 + 5 % 8 lbs $ 575
4
XCT - 400 - DCS
For: DCS
 Controller 400 + 20 % 8 lbs $ 630
5
XCT - 400 - PDS
For: PDS
 Controller 400 + 20 % 8 lbs $ 630
6
XCT - 400 -TXT48
For: Factory (TXT-48V)
 Controller 400 + 20 % 8 lbs $ 630
7
XCT - 500 - DCS
For: DCS
 Controller 500 + 30 % 8 lbs $ 743
8
XCT - 500 - PDS
For: PDS
 Controller 500 + 30 % 8 lbs $ 743
9
XCT - 500 - TXT48
For: Factory (TXT-48V)
 Controller 500 + 30 % 8 lbs $ 743
 Yamaha Regen
Part NumberAmpsTorqueTurboWeightPriceQty
1
XCT - 300 - G19
For: G19
 Controller 300 + 5 % 8 lbs $ 575
2
XCT - 300 - G22
For: G22
 Controller 300 + 5 % 8 lbs $ 575
3
XCT - 300 - YDRE
For: Drive - G29
 Controller 300 + 5 % 8 lbs $ 575
4
XCT - 400 - G19
For: G19
 Controller 400 + 20 % 8 lbs $ 630
5
XCT - 400 - G22
For: G22
 Controller 400 + 20 % 8 lbs $ 630
6
XCT - 400 - YDRE
For: Drive - G29
 Controller 400 + 20 % 8 lbs $ 630
7
XCT - 500 - G19
For: G19
 Controller 500 + 30 % 8 lbs $ 743
8
XCT - 500 - G22
For: G22
 Controller 500 + 30 % 8 lbs $ 743
9
XCT - 500 - YDRE
For: Drive - G29
 Controller 500 + 30 % 8 lbs $ 743
 Club Car Series
Part NumberAmpsTorqueThrottleWeightPriceQty
1
SR - 300 Amp - 12 to 48 V
For: Club Car
 Controller300+ 5 % 8 lbs $ 549
2
SR - 400 Amp - 12 to 48 V
For: Club Car
 Controller400+ 20 % 8 lbs $ 615
3
SR - 500 Amp - 12 to 48 V
For: Club Car
 Controller500+ 30 % 8 lbs $ 699
 EZ-GO Series
Part NumberAmpsTorqueThrottleWeightPriceQty
1
SR - 300 Amp - 12 to 48 V
For: EZ-GO
 Controller300+ 5 % 8 lbs $ 549
2
SR - 400 Amp - 12 to 48 V
For: EZ-GO
 Controller400+ 20 % 8 lbs $ 615
3
SR - 500 Amp - 12 to 48 V
For: EZ-GO
 Controller500+ 30 % 8 lbs $ 699
 Yamaha Series
Part NumberAmpsTorqueThrottleWeightPriceQty
1
SR - 300 Amp - 12 to 48 V
For: Yamaha
 Controller300+ 5 % 8 lbs $ 549
2
SR - 400 Amp - 12 to 48 V
For: Yamaha
 Controller400+ 20 % 8 lbs $ 615
3
SR - 500 Amp - 12 to 48 V
For: Yamaha
 Controller500+ 30 % 8 lbs $ 699
DC Controllers
 Club Car Regen
Part NumberAmpsTorqueWeightPriceQty
1
440N-IQ
For: Club Car IQ Carts
 Controller440+ 25 %8 lbs$ 669.00
2
600N-IQ
For: Club Car IQ Carts
 Controller600+ 35 %8 lbs$ 769.00
 EZ GO Regen
Part NumberAmpsTorqueWeightPriceQty
1
440N-DCS
For: EZ GO DCS Carts
 Controller440+ 25 %8 lbs$ 669.00
2
440N-PDS
For: EZ GO PDS Carts
 Controller440+ 25 %8 lbs$ 669.00
3
440N-TXT48
For: EZ GO TXT - 48V Carts
 Controller440+ 25 %8 lbs$ 669.00
4
600N-DCS
For: EZ GO DCS Carts
 Controller600+ 35 %8 lbs$ 769.00
5
600N-PDS
For: EZ GO PDS Carts
 Controller600+ 35 %8 lbs$ 769.00
6
600N-TXT48
For: EZ GO TXT - 48V Carts
 Controller600+ 35 %8 lbs$ 769.00
 Yamaha Regen
Part NumberAmpsTorqueWeightPriceQty
1
440N-G19
For: Yamaha G19 Carts
 Controller440+ 25 %8 lbs$ 669.00
2
440N-G22
For: Yamaha G22 Carts
 Controller440+ 25 %8 lbs$ 669.00
3
440N-G29
For: Yamaha G29 Carts
 Controller440+ 25 %8 lbs$ 669.00
4
600N-G19
For: Yamaha G19 Carts
 Controller600+ 35 %8 lbs$ 769.00
5
600N-G22
For: Yamaha G22 Carts
 Controller600+ 35 %8 lbs$ 769.00
6
600N-G29
For: Yamaha G29 Carts
 Controller600+ 35 %8 lbs$ 769.00
 Club Car Series
Part NumberAmpsTorqueModel (Volts - Year or Throttle)WeightPriceQty
1
440N
For: Club Car Series Carts
 Controller440+ 25 %8 lbs$ 669.00
2
600N
For: Club Car Series Carts
 Controller600+ 35 %8 lbs$ 769.00
 EZ GO Series
Part NumberAmpsTorqueModel (Volts - Year or Throttle)WeightPriceQty
1
440N
For: EZ GO Series Carts
 Controller440+ 25 %8 lbs$ 669.00
2
600N
For: EZ GO Series Carts
 Controller600+ 35 %8 lbs$ 769.00
 Yamaha Series
Part NumberAmpsTorqueModel (Volts - Year or Throttle)WeightPriceQty
1
440N
For: Yamaha Series Carts
 Controller440+ 25 %8 lbs$ 669.00
2
600N
For: Yamaha Series Carts
 Controller600+ 35 %8 lbs$ 769.00
Solenoids
Part NumberVoltageWeightPriceQty
1Solenoid-36/48V- up to 650 AMPWire Kit364 lbs$ 173
2Solenoid-36/48V- up to 650 AMPWire Kit484 lbs$ 173
Heavy Duty Wire Kits
Wire Kits for Regen Vehicles
Part NumberWire SizeWeightPriceQty
1
Wire Kit : EZGO - DCS/PDS
For: EZ-GO 36 Volt - DCS, EZ-GO 36Volt - PDS, EZ-GO 48 Volt - (Factory - TXT), EZ-GO 48 Volt - (Converted)
Wire Kit4 AWG4 lbs $ 193
2
Wire Kit : Club Car - IQ
For: Club Car 48 Volt - IQ/Precedent (6x8V batteries)
Wire Kit4 AWG4 lbs $ 193
3
Wire Kit : Club Car -Precedent
For: Club Car 48 Volt - Precedent (4x12V batteries)
Wire Kit4 AWG4 lbs $ 193
4
Wire Kit : Yamaha - G19/G22
For: Yamaha 48 Volt - G19, Yamaha 48 Volt - G22
Wire Kit4 AWG4 lbs $ 193
5
Wire Kit : Yamaha - G29
For: Yamaha Drive - G29
Wire Kit4 AWG4 lbs $ 204
Wire Kits for Series Vehicles
Part NumberWire SizeWeightPriceQty
1
Wire Kit:Club Car-Series 95&up
For: Club Car 48 Volt - 1996 and Later, Club Car 48 Volt - 1995
Wire Kit4 AWG4 lbs $ 204
2
Wire Kit : EZGO-Series 96 & UP
For: EZ-GO 36 Volt - 1996 and Later
Wire Kit4 AWG4 lbs $ 193
Motor & Controller Cross Reference



Golf Cart Motor Parts
Brush Box
Part Number Description Wt Price Qty
bbox170-0001 Motor Part Brush Box 1 $ 40.00
Bearing
Part Number Description Wt Price Qty
bear-0205 Motor Part Bearing (205) 1 $ 10.00
Brush Assemblies
Part Number Description Wt Price Qty
brha-1000 Motor Part Brush Assembly (brsh-1000, hfas:1003) 1 $ 16.00
brha-3000 Motor Part Brush Assembly (brsh-3000, hfas:1003) 1 $ 16.00
Commutator Endhead Assembly
Part Number Description Wt Price Qty
ceha170-0001 Motor Part Commutator Endhead Assembly (Curved Brush) 2 $ 156.00
Controller Accessories
Part Number Description Wt Price Qty
Controller-USB Motor Part USB A-B Cable for Alltrax Controller Programming 0.2 $ 20.00
Drive Endhead Assembly
Part Number Description Wt Price Qty
deha170-0001 Motor Part Drive Endhead Asembly (mining) 2 $ 75.00
Diode
Part Number Description Wt Price Qty
Diode - for 400 Amp Solenoid Motor Part Diode - for 400 Amp Solenoid 1 $ 5.00
Hex Nuts (Brass)
Part Number Description Wt Price Qty
hnut-1000 Motor Part Nut : Hex Head (1/4") 0.2 $ 0.90
hnut-1001 Motor Part Nut : Hex Head (5/16") 0.2 $ 0.90
hnut-1002 Motor Part Nut : Hex Head (3/8") 0.2 $ 0.90
Hole Plug
Part Number Description Wt Price Qty
hplg-0001 Motor Part Hole Plug 0.2 $ 5.00
Terminal Stud Insulators
Part Number Description Wt Price Qty
ints-1000 Motor Part Insulation : Terminal Stud (1/4") 0.2 $ 1.50
ints-1001 Motor Part Insulation : Terminal Stud (5/16") 0.2 $ 1.50
ints-1002 Motor Part Insulation : Terminal Stud (3/8") 0.2 $ 1.50
Washers: Insulating
Part Number Description Wt Price Qty
inws-1000 Motor Part Insulation : Washer (1/4") 0.2 $ 1.50
inws-1001 Motor Part Insulation : Washer (5/16") 0.2 $ 1.50
inws-1002 Motor Part Insulation : Washer (3/8") 0.2 $ 1.50
Magnets: Speed Sensor
Part Number Description Wt Price Qty
mgnt-1004 Motor Part Magnet : Speed Sensor - 4 pole 0.2 $ 5.00
mgnt-1008 Motor Part Magnet : Speed Sensor - 8 pole 0.2 $ 5.00
Resistors
Part Number Description Wt Price Qty
Resistor, Precharge - 36V Motor Part Resistor, Precharge - (KIT-PCR-250) 0.2 $ 6.00
Resistor, Precharge - 48V Motor Part Resistor, Precharge - (KIT-PCR-470) 0.2 $ 6.00
Speed Sensor Kits
Part Number Description Wt Price Qty
spdk-0001 Motor Part Speed Sensor Kit w 8 Pole Magnet 0.5 $ 50.00
spdk-0001 - 4 pole Motor Part Speed Sensor Kit w 4 Pole Magnet 0.5 $ 50.00
spdk-0002 Motor Part Speed Sensor Kit (Deutch Connector) w 8 Pole Magnet 0.5 $ 50.00
spdk-0002 - 4 pole Motor Part Speed Sensor Kit (Deutch Connector) w 4 Pole Magnet 0.5 $ 50.00
Speed Sensors
Part Number Description Wt Price Qty
spds-0001 Motor Part Speed Sensor 0.5 $ 40.00
spds-0002 Motor Part Speed Sensor with Deutsch Connector 0.5 $ 40.00
Discount Code

Cart is Empty!
